Introducing the

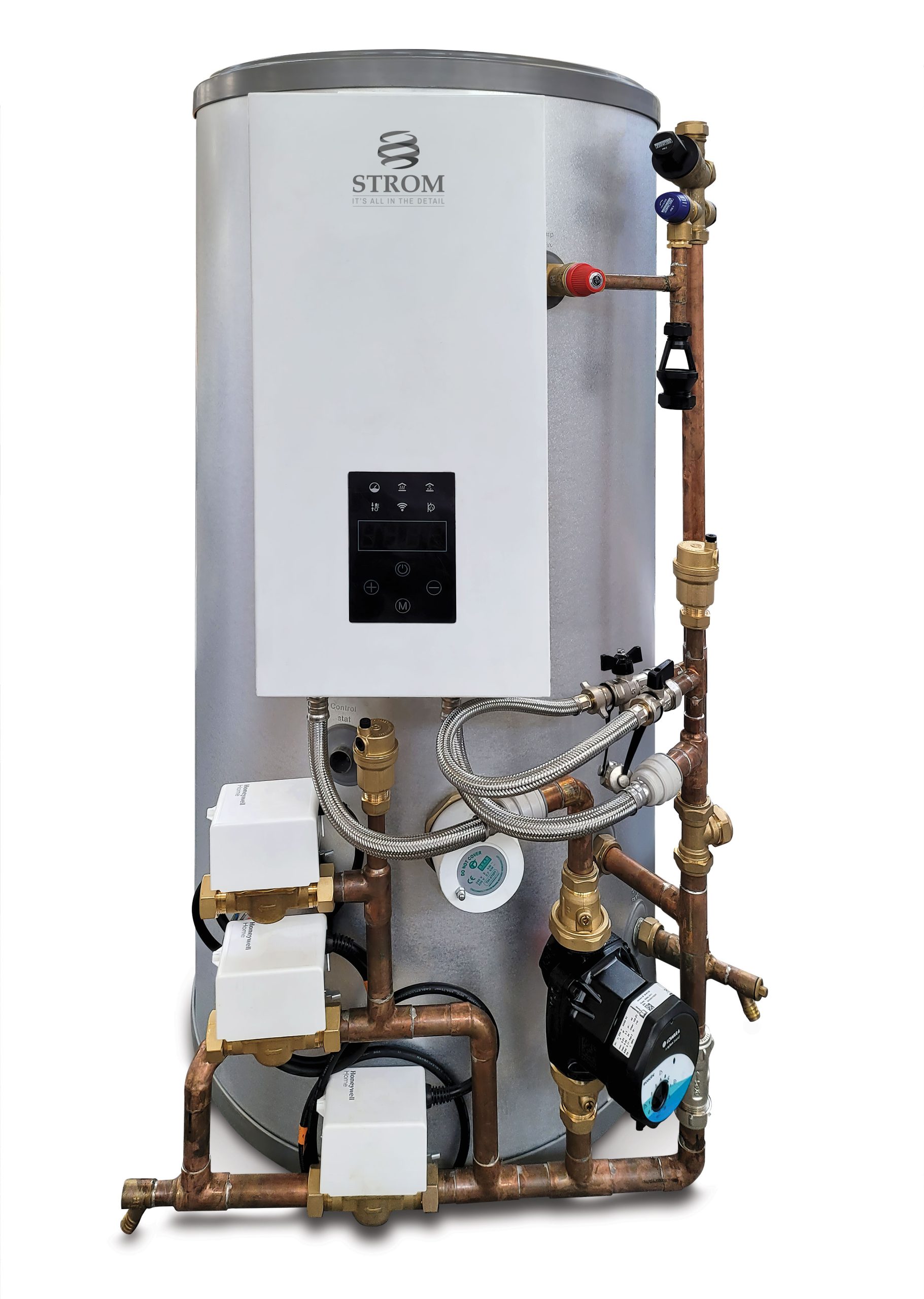

Strom Electric Boiler A.I.One

By combining our two most popular products, Strom have drastically reduced installation time on site, allowing more installs per day, therefore decreasing costs.

Using only premium industry leading components the Strom Pre-Plumb Electric Boiler unit is not just a cost saver, it is also a glimpse into the future of heating. Requiring minimal plumbing and electrical connections once on site this unit can start producing heating and hot water in no time at all.

Power Ratings:

Cylinder Capacities:

6kW, 9kW, 11kW, 14.4kW

Single Phase

150, 170, 200

Litres

why choose electric

Electric, the fuel of the future...

Unlike Gas, when you use Electric you can control where it comes from. By choosing an Energy Supplier that supplies only 100% renewable electric you can be assured that your heating not harming the environment.

Over 99% efficient

Strom electric boilers are the peak of efficiency, with very little losses you can be sure that every kW counts.

No Expensive Servicing

Unlike their fossil fuel counterparts our Electric Boilers need no invasive servicing, meaning less cost to you.

Planet Kind

If the carbon savings weren't good enough, Electric Boilers can be repaired over and over again, for life!

near silent

Minimal moving parts

Compact Dimensions

Touch button operation

No flue required

Zero carbon monoxide

The Technology

The Sum Of Its Parts...

The unique Strom Heat Exchanger is what gives our Boilers the quality we know you deserve, and whilst we are often copied we will never be bettered.

Heat is transferred across the whole surface area

The heating element transfers heat evenly across its whole surface, this increases heat up speed as well as eliminating hot spots.

Water is kept separate to the heating strands

This severely reduces the waters ability to corrode the heating strands drastically improving the lifespan of the heating element.

Multiple heating strands in each element

Where our competitors use one strand to supply all their heating capacity we use multiple strands meaning less stress on components.

The Strom heating element is a single unit

Other products tend to use an element inside a small tank making replacement difficult. Strom's unit is a single unit making replacement easy.

Fully Self Modulating heating technology

Having multiple strands each with its own control means fast and accurate modulation allowing boilers to modulate down to as little as 1kW.

Less Limescale means longer performance

Because hot spots are elminated limescale is less likely to form inside the element, this means no reduction in performance.

Technical Specification

Check your spec...
SBSP6H
SBSP9H
SBSP11H
SBSP15H
kW Rating
6kW
9kW
11kW
14.4kW
Phases
1
1
1
1
Voltage
230VAC
230VAC
230VAC
230VAC
Amps
26A
41A
48A
62A
Minimum Breaker Size
32A
45A
50A
63A
Minimum Cable Size
2.5mm2
6mm2
10mm2
10mm2
Max. Heating Pressure
1.5Bar
1.5Bar
1.5Bar
1.5Bar
Min. Heating Pressure
0.5Bar
0.5Bar
0.5Bar
0.5Bar
Max. Flow Temp
80oC
80oC
80oC
80oC
Min. Flow Temp
20oC
20oC
20oC
20oC
Heating Connection Size
3/4"M
3/4"M
3/4"M
3/4"M
PRV Connection Size
15mmF
15mmF
15mmF
15mmF
Heating ErP Rating
D
D
D
D

Unfortunately this table cannot be displayed on Mobile Devices as there is just too much information. To view the technical data please either view from a Desktop, Laptop, or Tablet device. Alternatively the data can be found in the Installation Manual available as a PDF below.

Downloads

Need more information?

Get the latest downloads for our products, choose from brochures, user guides, and installation manuals below.

Installation Manual

AIOne Manual

Electric Boiler Brochure

Issue 3
